How to Draw Perpendicular Lines Perfectly Without Special Tools
Learn how to easily draw perfect perpendicular lines (90-degree angles) using common household items. This step-by-step guide will help you achieve accurate geometric constructions for various DIY projects.
Perpendicular lines are a fundamental concept in geometry, defining two lines that intersect at a perfect 90-degree angle. Understanding and being able to accurately draw perpendicular lines is crucial for many DIY projects, from carpentry and crafting to laying out a garden bed. This guide will show you several easy methods to achieve precise 90-degree angles using only common household items, ensuring accuracy even without specialized tools like a protractor or set square. Master these techniques for drawing right angles and enhance the precision of all your projects.

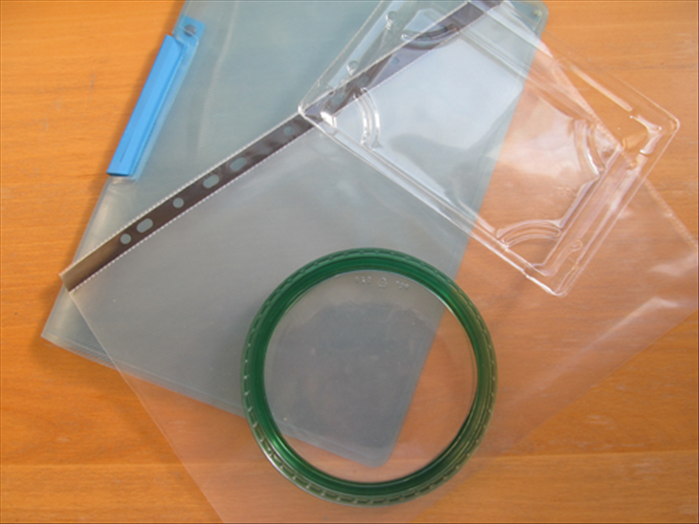

Before you begin, gather these simple items. You likely have most of them around your home, making these geometric constructions accessible to everyone.
Method 1: Drawing a Perpendicular Line from a Point on a Line
This method allows you to construct a perpendicular line that passes through a specific point on an existing line, creating a perfect 90-degree angle.

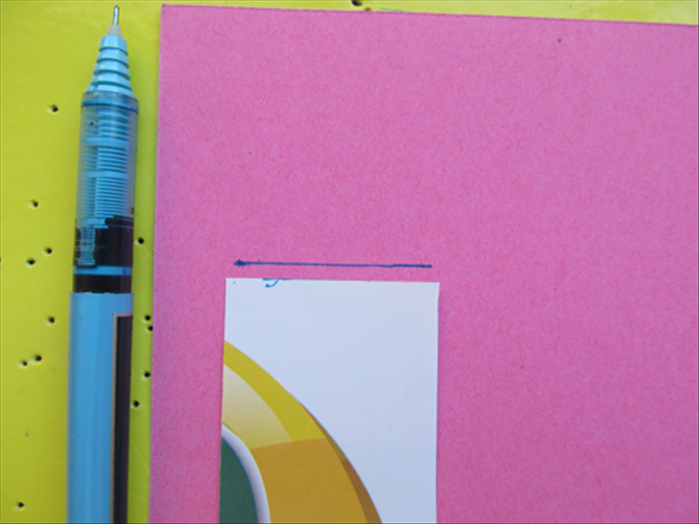

- Step 1: Draw Your Initial Line and Mark a Point. Start by drawing a straight line across your paper using your ruler. Choose any point on this line and label it 'P'. This is where your perpendicular line will intersect.
- Step 2: Create Equidistant Arcs. Place the tip of your pencil or pen on point 'P'. Use your string (or compass) to draw two small arcs that intersect your initial line on either side of 'P'. Ensure both arcs are the same distance from 'P'. Mark these new intersection points as 'A' and 'B'.
- Step 3: Draw Intersecting Arcs Above (or Below) the Line. Now, place your pencil point on 'A'. Extend your string slightly (more than half the distance between A and B). Draw an arc above (or below) your initial line. Without changing the length of your string, move your pencil point to 'B' and draw another arc that intersects the first one. Label this intersection point 'C'.
- Step 4: Connect the Points. Use your ruler to draw a straight line connecting point 'P' to point 'C'. This new line is perpendicular to your initial line, forming a perfect 90-degree angle at point 'P'. This is a fundamental way of drawing right angles precisely.
Method 2: Drawing a Perpendicular Line from a Point Not on the Line
Sometimes you need to drop a perpendicular line from a point that isn't on the existing line. This method helps you achieve that.
- Step 1: Draw Your Line and Mark an External Point. Draw a straight line and label it 'Line XY'. Now, mark a point 'Q' anywhere above (or below) Line XY. This is the point from which you want to draw your perpendicular line.
- Step 2: Swing an Arc from Point Q. Place your pencil point on 'Q'. Use your string (or compass) to draw an arc that intersects Line XY at two distinct points. Make sure the arc extends past the line in both directions. Label these intersection points 'R' and 'S'.
- Step 3: Create Intersecting Arcs Below the Line. Place your pencil point on 'R'. Using a string length greater than half the distance between 'R' and 'S', draw an arc below (or above, opposite to Q) Line XY. Without changing the string length, move your pencil point to 'S'. Then draw another arc that intersects the first one. Label this intersection point 'T'.
- Step 4: Connect Q to T. Draw a straight line using your ruler connecting point 'Q' to point 'T'. This line will be perpendicular to Line XY, creating a 90-degree angle where it meets Line XY. This method is excellent for how to make a 90 degree angle from an external reference point.
Method 3: Drawing a Perpendicular Bisector of a Line Segment
A perpendicular bisector is a line that not only intersects another line segment at a 90-degree angle but also divides it into two exactly equal halves.
- Step 1: Draw a Line Segment. Draw a straight line segment on your paper and label its endpoints 'A' and 'B'.
- Step 2: Draw Intersecting Arcs. Place your pencil point on 'A'. Set your string length (or compass radius) to be more than half the length of the segment A-B. Draw a large arc that extends both above and below the line segment.
- Step 3: Repeat from the Other Endpoint. Without changing the string length, move your pencil point to 'B'. Draw another large arc that intersects the first arc at two points. Label these intersection points 'C' and 'D'.
- Step 4: Connect the Intersection Points. Use your ruler to draw a straight line connecting point 'C' to point 'D'. This line is the perpendicular bisector of segment A-B, creating two perfect 90-degree angles and dividing the segment exactly in half. This is a crucial technique for dividing a circle accurately or finding the center of a line.
Tips for Accuracy and Precision
Achieving perfect perpendicular lines requires a little practice and attention to detail. Follow these tips to ensure your geometric constructions are as accurate as possible:
- Use a Sharp Pencil/Pen: Dull writing instruments can lead to thick, imprecise lines and marks, making it harder to find exact intersection points.
- Keep Your Straight Edge Steady: Any slight movement of your ruler can throw off your lines. Hold it firmly in place while drawing.
- Practice Each Method: Geometry drawing, especially without specialized tools, improves with repetition. Don't be discouraged if your first attempts aren't perfect.
- Maintain Consistent String Length/Compass Radius: When creating arcs, it's vital that the distance from your pivot point to your pencil remains constant.
- Double-Check Your Angles: If you have a square object or a protractor, you can use it to verify that your constructed angles are indeed 90 degrees. This helps reinforce your understanding of drawing right angles.
